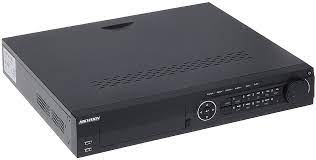

DVR DS-7316HQHI-F4/N Pentahíbrido 16ch, 1080p lite @25fps, H264, x4 HDD h/6Tb, Alarma I/O, rackeable

Descripción

DVR penta-hibrido de 16 canales analógicos más 2 canales IP. tecnologías soportadas: analógico estandar (CVBS), HD-TVI, AHD, HD-CVI e IP. Frente completo con botones para manejo y programación local. Grabación / main stream: (para 1080p lite no habilitado): hasta 3Mpx/1080p@12fps; 720p/vga/wd1/4cif/cif@25fps. Con 1080p lite habilitado: 3 Mpx/1080p lite/720p/vga/wd1/4cif/cif@25fps. Codec de video h.264 y h.264+. Soporta POS. Dual-stream. Salidas de video: CVBS, VGA y HDMI configurables en modo simultaneas o independientes (VGA hasta 1920x1080p) y HDMI hasta 4k. Soporta x4 HDD de hasta 6 Tb. x1 eSATA, x4 entradas de audio, x2 salida de audio. x2 usb 2.0, x1 usb 3.0, x1 RJ-45 lan 10/100/1000, x1 RS-485, x1 RS-232, x16 entradas de alarma, x4 salidas de alarma. Alimentación 100-240 vac/55w. chasis 19" apto para rack. Dimensiones: 445 × 390 × 70 mm.

Características

• Video/Audio Input
• Video CompressionH.264+/H.264
• Video Input16-ch, BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
• Supported HDTVI Input1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
• Supported AHD Input720p/25Hz, 720p/30Hz
• CVBS InputSupport
• IP Video Input2-ch (up to 18-ch) Up to 4.0 MP resolution
• Audio CompressionG.711u
• Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
•
  Video/Audio Output
• CVBS OutputSupport
• HDMI/VGA OutputHDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 ×1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
  VGA: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
• Encoding ResolutionWhen 1080p Lite mode not enabled: 1080p(non-real-time)/720p(non-real-time)/VGA/WD1/4CIF/CIF;
  When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame RateMain stream: 25fps(P)/30fps(N)
  Sub-stream: WD1/4CIF (non-real-time); CIF/QVGA/QCIF (real time)
• Video Bit Rate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Synchronous Playback16-ch
•
  Network Management
• Remote Connections128
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
•
  Hard Disk
• SATA4 SATA interfaces
• ESATASupport
• CapacityUp to 6TB capacity
•
  External Interface
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
• Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• USB Interface2 USB 2.0 on the front panel
  1 USB 3.0 on the rear panel
• Serial Interface1 RS-232 serial interface
  1 RS-485 serial interface, full-duplex
  1 RS-485 keyboard interface
• Alarm In/Out16/4
•
  General
• Power Supply100 to 240 VAC
• Consumption (Without HDD)≤ 55 W
• Working Temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)
• Working Humidity10% to 90%
• Dimensions (W × D × H)445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
• Weight (Without HDD)≤ 5 kg (11.0lb)
